Note: This article is discontinued. You can find the current article here: 1198058 / Universal counter-trough, plastic

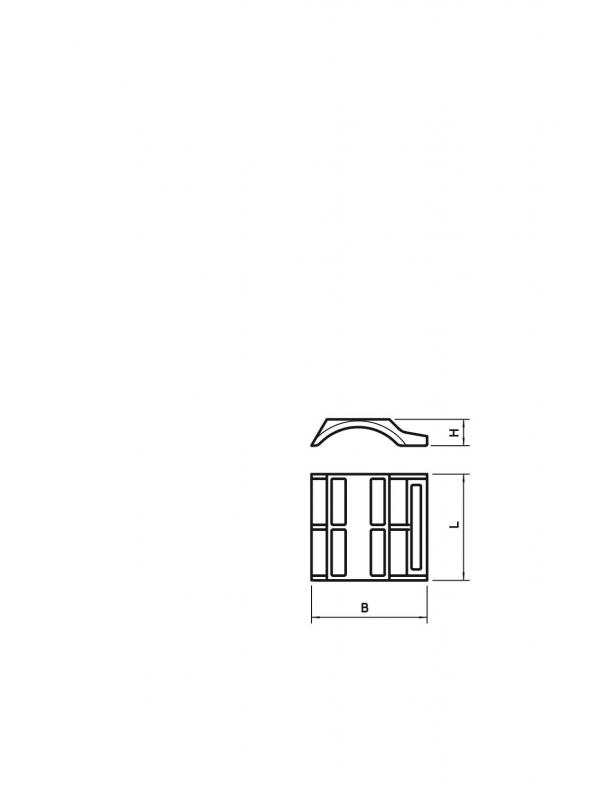

Counter-trough, plastic, universal 57 | 10.6 | 40 | 52 | 58
morepic-1 morepic-2

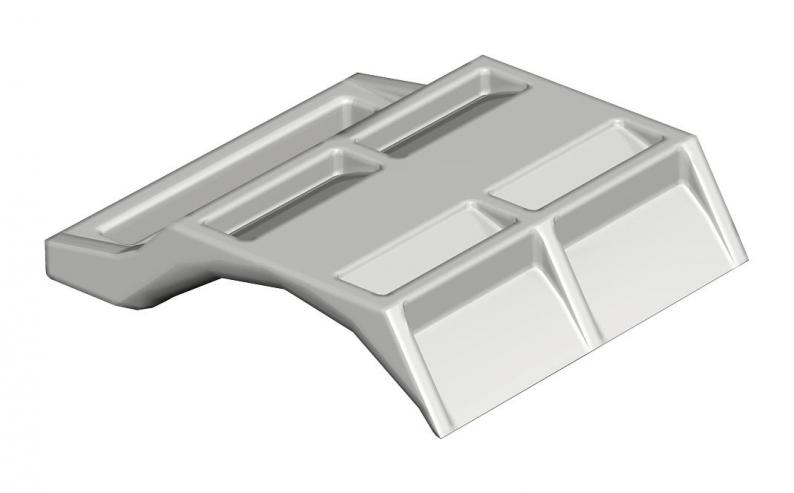

Counter-trough, plastic, universal

Item no. 1197584 | EAN 4012195083597

1197584 / 2058FW 58 LGR
57 mm
10.6 mm
40 mm
52 mm
58 mm
Product description

Product description

Irrespective of the rail, universally applicable by pushing onto a limb of the BBS clamp clip.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11–12 mm
  • Slot width 16–17 mm
  • Slot width 18 mm
  • Slot width 22 mm
Technical data

Technical data

Clamping range D, max. 58 mm
Clamping range D, min. 52 mm
Colour Light grey; RAL 7035
Counter-trough/clip version Counter sleeve
Dimension 52-58mm
Dimension B 57 mm
Dimension H 10,6 mm
Dimension L 40 mm
Halogen-free yes
Material Polypropylene
Suitable for max. cable diameter 58 mm
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058FW 58 LGR 57 mm 10.6 mm 40 mm 52 mm 58 mm 1197584
100 piece
