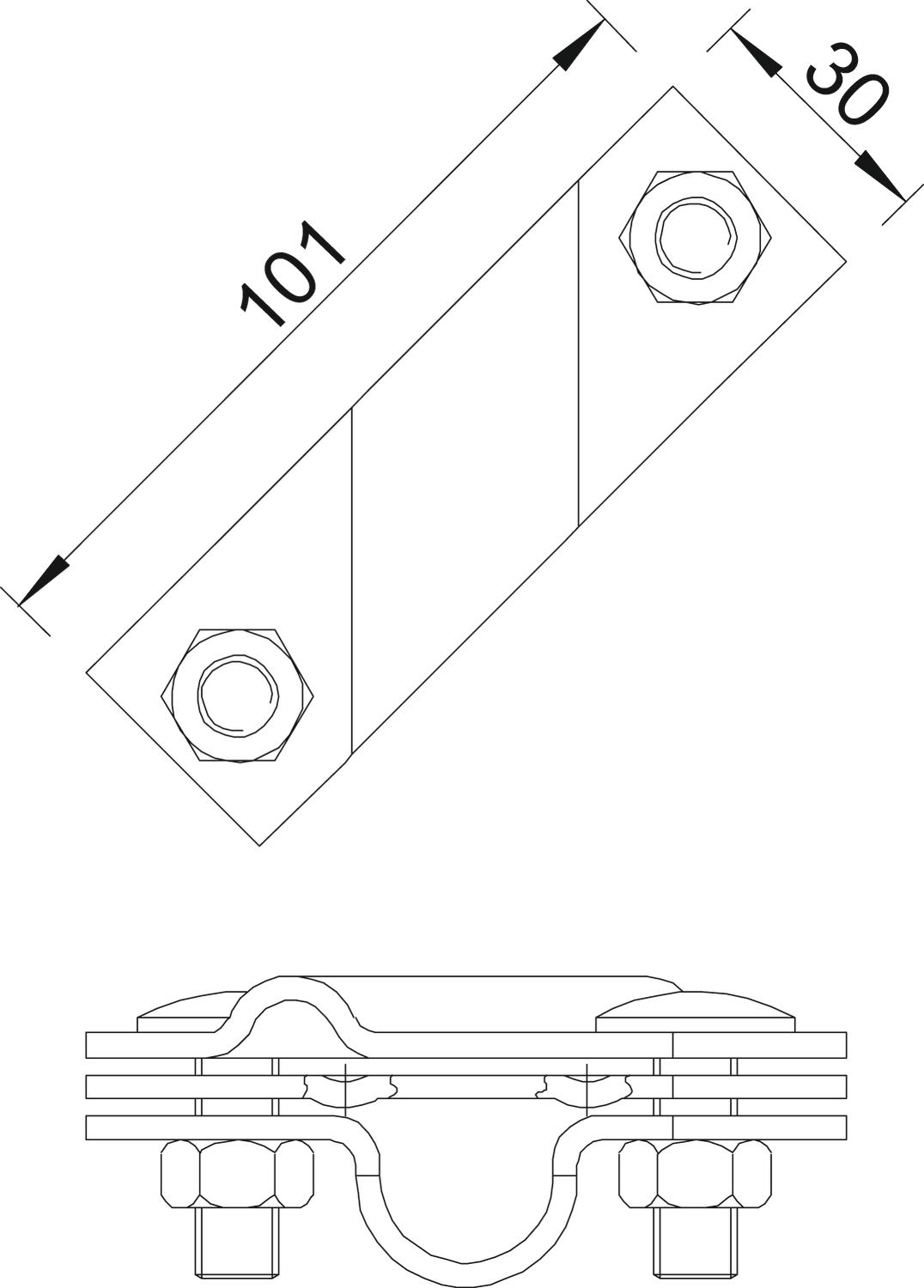

Connection clip for earthing rod, universal
Type 2760 20 SS316
|Item no. 5450534
|EAN 4012197011895
Item no. / Type
Smallest selling unit: 1 piece
1piece
piece
Description
• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)
• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40
• With adapter plate
• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40
• With adapter plate
• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
Technical data
Technical data
| Suitable for round conductor diameters, min. | 8 mm |
|---|---|
| Suitable for round conductor diameters, max. | 10 mm |
| Type | Connection clip |
| Fit | Rd 8-10/FL40 mm |
| Dimension | 20mm |
| Material | Stainless steel |
| Clamping range, min. | 8 mm |
| Clamping range, max. | 10 mm |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
