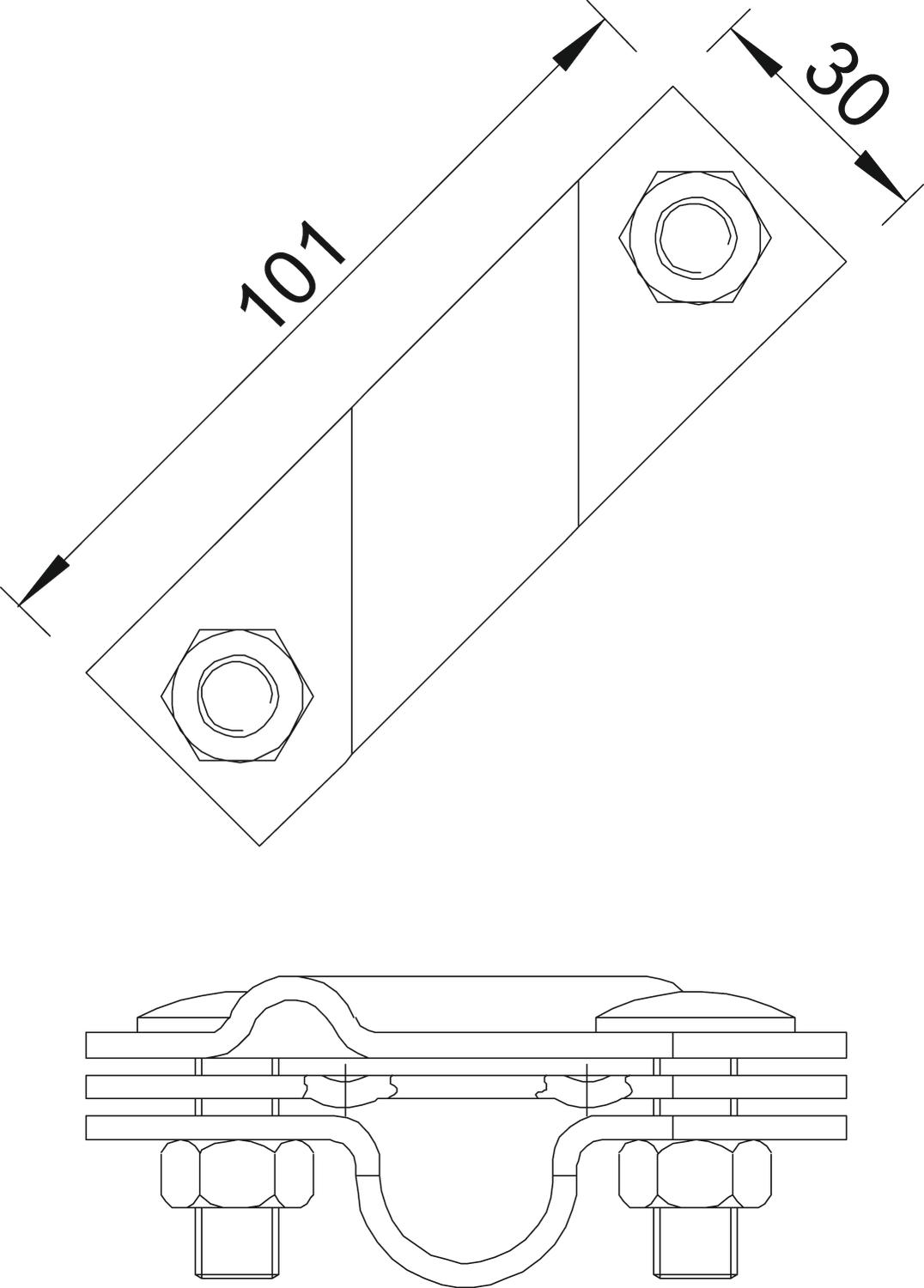

Connection clip for earthing rod, universal

Item no. 5450530 | EAN 4012197007898

Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)

• Suitable for connecting round conductors Rd 8-10 or flat conductors to FL 40

• With adapter plate

• Mounted with 2 hexagonal bolts M10 x 30 and 2 hexagonal bolts M10
  • Lightning current-tested
Technical data

Technical data

Clamping range, max. 10 mm
Clamping range, min. 8 mm
Dimension 14.2mm
Fit Rd 8-10/FL40 mm
Material Stainless steel
Suitable for flat conductor width max. 10 mm
Suitable for flat conductor width min. 8 mm
Suitable for round conductor diameters, max. 10 mm
Suitable for round conductor diameters, min. 8 mm
Type Connection clip
All types

All types

Types for earth rods Item no. Quantity SSU
2760 14 SS316 5450530
1 piece
2760 17 SS316 5450532
1 piece
2760 20 SS316 5450534
1 piece
2760 25 SS316 5450536
1 piece
