Connection clamp AB EX ISG, straight 18 | For M16 bolt

morepic-1

morepic-2

Connection clamp AB EX ISG, straight

Item no. 5240366 | EAN 4012196524259

Item no. / Types

Drill hole diameter, min.

Version for

Product description

Product description

Connection clamp for mounting the OBO Ex spark gap, type EX ISG, on insulating flanges and insulating pieces.

Technical data

Technical data

Accessories	yes
Dimension	120x45x40
Drill hole diameter, min.	18 mm
Material	Steel

Spare part	no
Surface	Hot-dip galvanised
Version for	For M16 bolt

All types

All types

Types	Drill hole diameter, min.	Version for	Item no.	Quantity	SSU
AB EX ISG S M10	11 mm	For M10 bolt	5240360	piece	2 piece
AB EX ISG S M12	14 mm	For M12 bolt	5240362	piece	2 piece
AB EX ISG S M16	18 mm	For M16 bolt	5240366	piece	2 piece
AB EX ISG S M20	22 mm	For M20 bolt	5240370	piece	2 piece
AB EX ISG S M24	26 mm	For M24 bolt	5240374	piece	2 piece

Downloads

Data sheet AB EX ISG S M16 / 5240366 , 0.19MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Lightning and surge protection for potentially explosive (Ex) areas , 2.10MB , pdf

Catalogue Überspannungsschutz , 28.42MB , pdf

REACH Declaration of conformity AB EX ISG S M16 / 5240366 , 0.12MB , pdf

Download

RoHS Declaration of conformity AB EX ISG S M16 / 5240366 , 0.12MB , pdf

Download

Product graphic AB EX ISG S M16 / 5240366, 44.93 kB, jpg

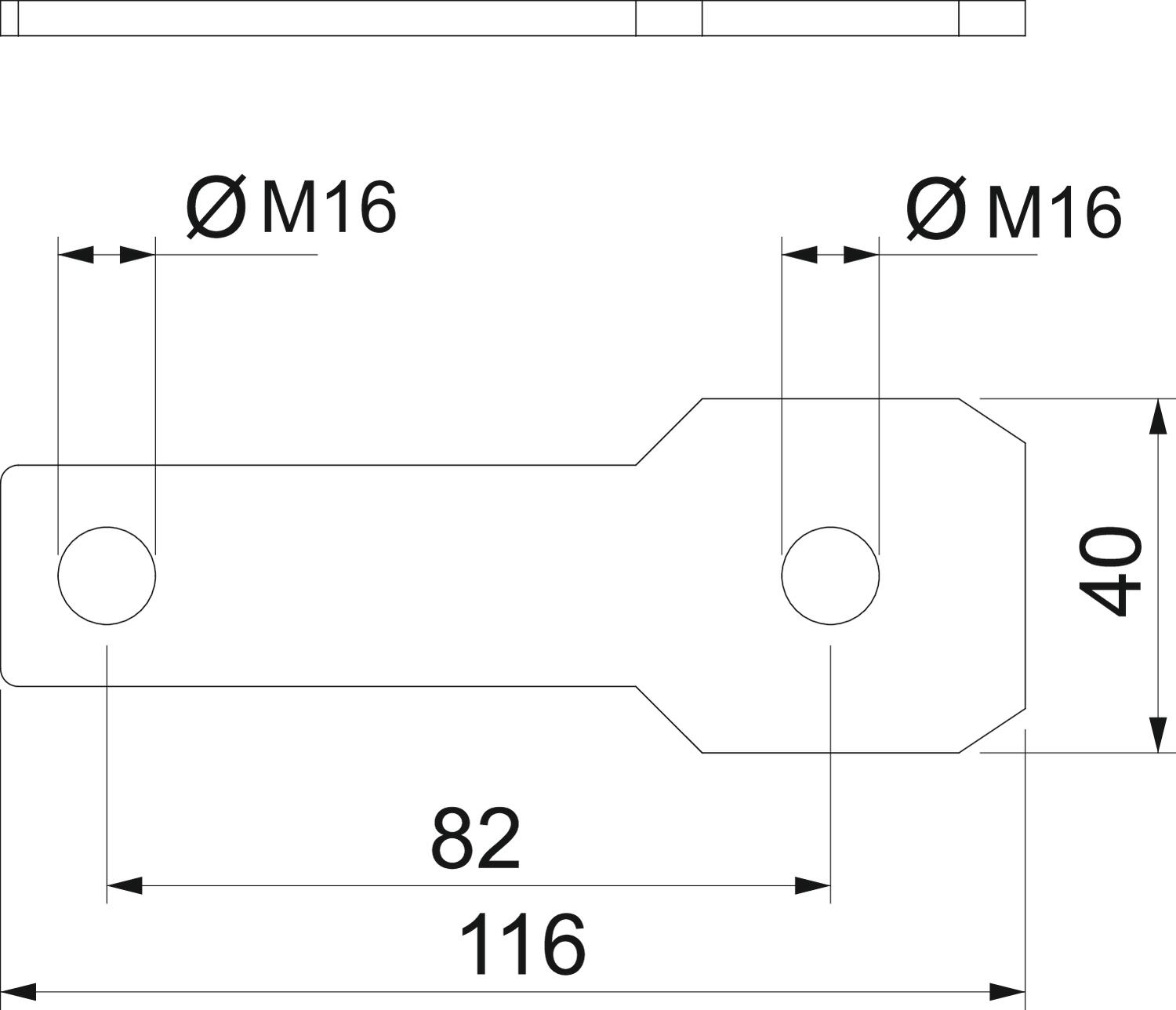

Scale drawing AB EX ISG S M16 / 5240366, 59.65 kB, jpg

AB EX ISG S M16 / 5240366
