Note: This article is discontinued. You can find the current article here: 1186282 / Clamp clip 2056 H-foot, 1-fold, plastic pressure sleeve, FT

Clamp clip, single, plastic pressure trough, FT 76 | 82 | 5

Clamp clip, single, plastic pressure trough, FT

Item no. 1160826 | EAN 4012195065173

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.

Technical data

Technical data

Clamping range D, max.	82 mm
Clamping range D, min.	76 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,41 kg CO₂e / 1 Piece

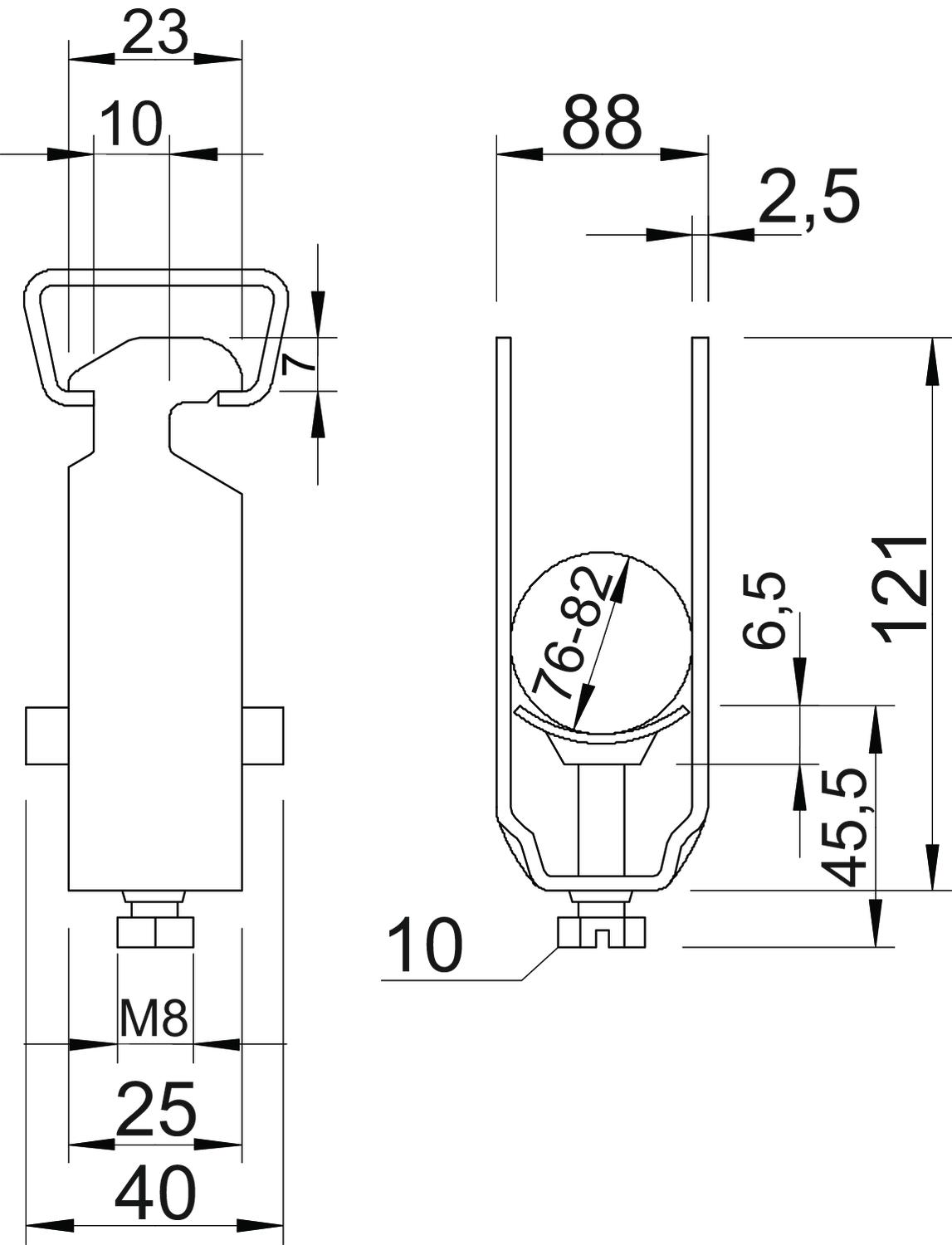

Dimension	76-82mm
Dimension A	25 mm
Dimension B	88 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	121 mm
Dimension L	45,5 mm
Dimension t	2,5 mm
Dimension x	6,5 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm

Halogen-free	yes
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 12 FT	8 mm	12 mm	3 Nm	1160125	piece	100 piece
2056 16 FT	12 mm	16 mm	3 Nm	1160168	piece	100 piece
2056 22 FT	16 mm	22 mm	3 Nm	1160222	piece	100 piece
2056 28 FT	22 mm	28 mm	3 Nm	1160281	piece	100 piece
2056 34 FT	28 mm	34 mm	5 Nm	1160346	piece	100 piece
2056 40 FT	34 mm	40 mm	5 Nm	1160400	piece	100 piece
2056 46 FT	40 mm	46 mm	5 Nm	1160451	piece	100 piece
2056 52 FT	46 mm	52 mm	5 Nm	1160524	piece	100 piece
2056 58 FT	52 mm	58 mm	5 Nm	1160583	piece	100 piece
2056 64 FT	58 mm	64 mm	5 Nm	1160648	piece	100 piece
2056 70 FT	64 mm	70 mm	5 Nm	1160702	piece	50 piece
2056 76 FT	70 mm	76 mm	5 Nm	1160761	piece	25 piece
2056 82 FT	76 mm	82 mm	5 Nm	1160826	piece	25 piece
2056 90 FT	82 mm	90 mm	5 Nm	1160907	piece	25 piece
2056 100 FT	90 mm	100 mm	5 Nm	1160990	piece	25 piece
