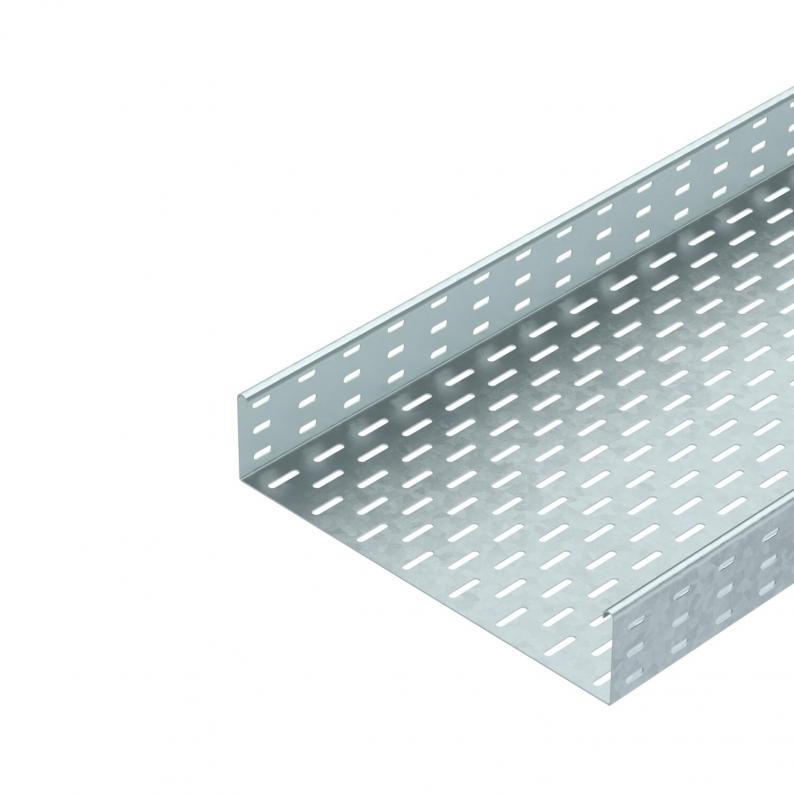

Cable tray SKS 85 FT

Cable tray SKS 85 FT

Type SKS 840 FT
|
Item no. 6058698
|
EAN 4012196061631
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Hot-dip galvanised
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

Dimensions

Length3000 mm
Width400 mm

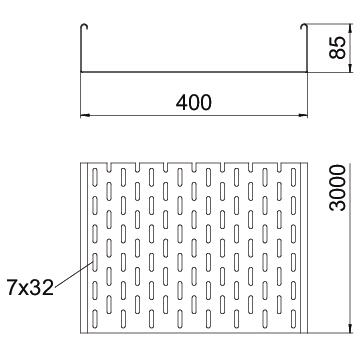

Height85 mm
Dimension B400 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Connector versionWithout connectors
Wide-span versionno
Usable cross-section338 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section33800 mm²
With coverno
Dimension85 x 400
Dimension85x400x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate15,0731 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m2,25 kN/m
Support spacing 2.5 m1,5 kN/m
Support spacing 3.0 m0,75 kN/m
Support spacing 1.5 m2,8 kN/m
Load diagram, cable tray, type SKS 85

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width
