Cable tray SKS 60 NC FS 3000 | 400 | 1.5 | yes | Steel | Strip galvanized
morepic-1 morepic-2

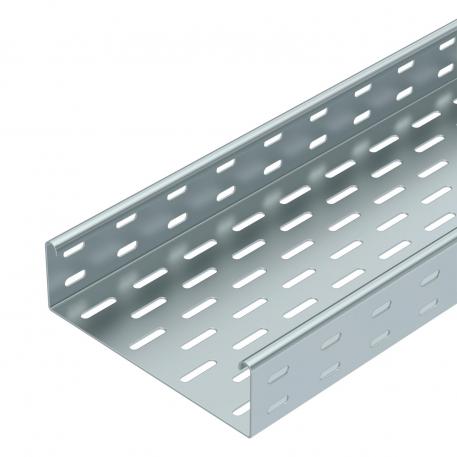

Cable tray SKS 60 NC FS

Item no. 6056408 | EAN 4012196978847

3000 mm
1.5 mm
yes
Steel
Strip galvanized
Product description
Product description
SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
Technical data

Technical data

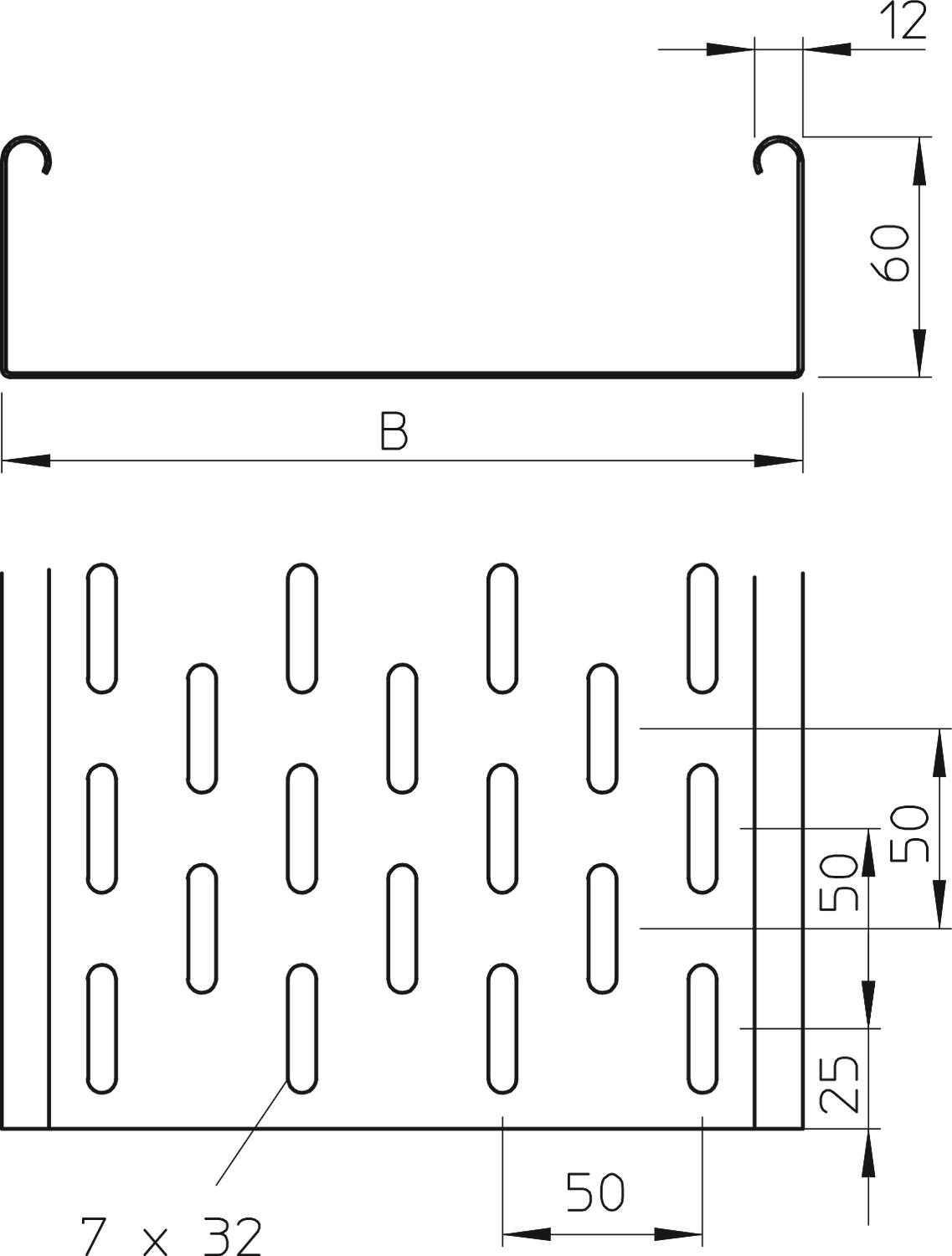

Base perforation 7 x 32
Colour zinc
Connector version Without connectors
Dimension 60x400x3000
Dimension 60 x 400
Dimension B 400 mm
Height 60 mm
Height 2 in
Length 3000 mm
Length 10 ft
Load test type according to IEC 61537 Type II
Maintain electrical functions yes
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Plate thickness 0,06 in
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 2,65 kN/m
Support spacing 2.0 m 1,8 kN/m
Support spacing 2.5 m 1,15 kN/m
Support spacing 3.0 m 0,5 kN/m
Surface Strip galvanized
Type of connector, cable support system Screwed
Usable cross-section 238 cm²
Usable cross-section 23800 mm²
Wide-span version no
Width 400 mm
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
SKS 610 NC FS 3000 mm 100 mm 1.5 mm yes Steel Strip galvanized 6056106
3 m
SKS 615 NC FS 3000 mm 150 mm 1.5 mm yes Steel Strip galvanized 6056157
3 m
SKS 620 NC FS 3000 mm 200 mm 1.5 mm yes Steel Strip galvanized 6056203
3 m
SKS 630 NC FS 3000 mm 300 mm 1.5 mm yes Steel Strip galvanized 6056297
3 m
SKS 640 NC FS 3000 mm 400 mm 1.5 mm yes Steel Strip galvanized 6056408
3 m
SKS 650 NC FS 3000 mm 500 mm 1.5 mm yes Steel Strip galvanized 6056505
3 m
SKS 660 NC FS 3000 mm 600 mm 1.5 mm yes Steel Strip galvanized 6056602
3 m
