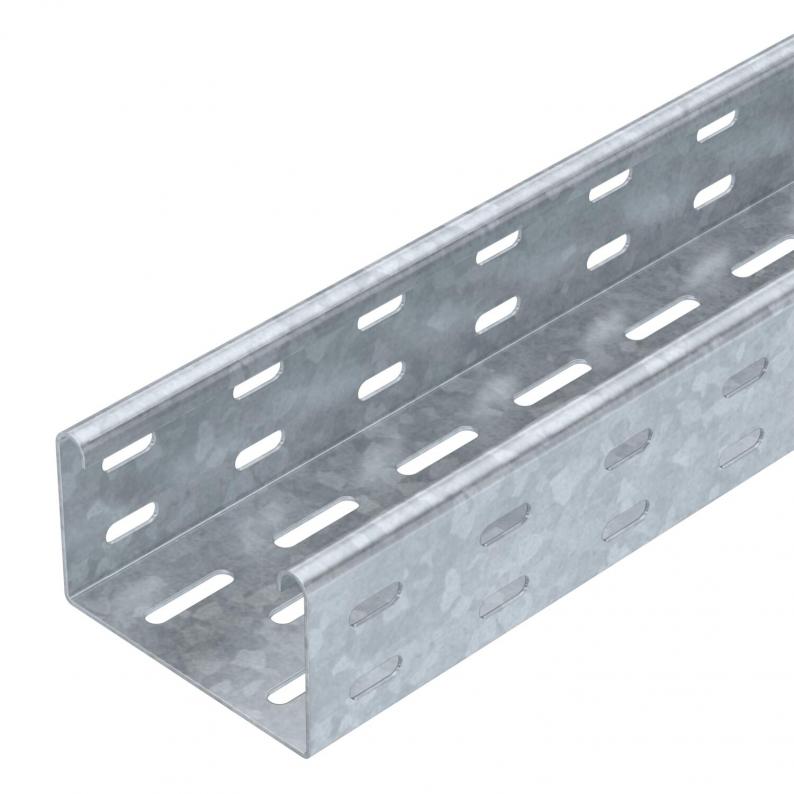

Cable tray SKS 60 FT

Item no. 6056636 | EAN 4012196389957

3000 mm
1.5 mm
Steel
Hot-dip galvanised
Product description
Product description
SKS 60 = Heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
  • Underwriters Laboratories Inc., USA & Canada
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Function maintenance class E30
  • Function maintenance class E60
  • Function maintenance class E90
Technical data

Technical data

Colour zinc
Connector version Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate 6,4055 kg CO₂e / 1 Meter

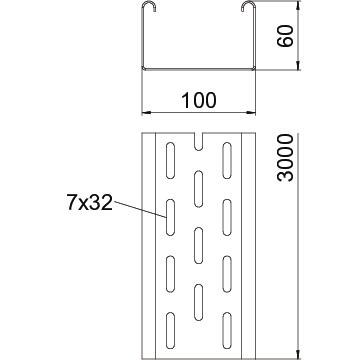

Dimension 60 x 100
Dimension 60x100x3000
Dimension B 100 mm
Fire protection Maintenance of electrical function of standard support structure
Height 2 in
Height 60 mm
Length 10 ft
Length 3000 mm
Load test type according to IEC 61537 Type II
Maintain electrical functions yes
Maß W 100 mm
Material Steel
Mounting perforation in base yes
NATO hole pattern no
Plate thickness 1,5 mm
Plate thickness 0,06 in
Rustproof steel, pickled no
Side perforation yes
Support spacing 1.5 m 2,65 kN/m
Support spacing 2.0 m 1,8 kN/m
Support spacing 2.5 m 1,15 kN/m
Support spacing 3.0 m 0,5 kN/m
Surface Hot-dip galvanised
Type of connector, cable support system Screwed
Usable cross-section 58 cm²
Usable cross-section 5800 mm²
Wide-span version no
Width 4 in
Width 100 mm
With cover no

Technical data

Load diagram, cable tray, type SKS 60

Load diagram, cable tray, type SKS 60
  • Permitted cable tray/ladder load in kN/m without man load Permitted cable tray/ladder load in kN/m without man load
  • Support width in m Support width in m
  • Rail bend in mm at permitted kN/m Rail bend in mm at permitted kN/m
  • Load scheme during testing Load scheme during testing
  • Load curve with cable tray/ladder width in mm Load curve with cable tray/ladder width in mm
  • Strut bend curve according to support width Strut bend curve according to support width
All types

All types

Types Length Width Plate thickness Maintain electrical functions Material Surface Item no. Quantity SSU
SKS 610 FT 3000 mm 100 mm 1.5 mm yes Steel Hot-dip galvanised 6056636
3 m
SKS 615 FT 3000 mm 150 mm 1.5 mm yes Steel Hot-dip galvanised 6056644
3 m
SKS 620 FT 3000 mm 200 mm 1.5 mm yes Steel Hot-dip galvanised 6056652
3 m
SKS 630 FT 3000 mm 300 mm 1.5 mm yes Steel Hot-dip galvanised 6056679
3 m
SKS 640 FT 3000 mm 400 mm 1.5 mm no Steel Hot-dip galvanised 6056695
3 m
SKS 650 FT 3000 mm 500 mm 1.5 mm no Steel Hot-dip galvanised 6056717
3 m
SKS 660 FT 3000 mm 600 mm 1.5 mm no Steel Hot-dip galvanised 6056733
3 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Straight connector FT Straight connector FT RLVK 60 FT 6067603
10 piece
Cover with turn buckle FT Cover with turn buckle FT DRL 100 FT 6051340
3 m
45° bend 60 FT 45° bend 60 FT RB 45 610 FT 6036130
1 piece
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 6036590
1 piece
Add-on tee 60 FT Add-on tee 60 FT RAA 610 FT 6042211
1 piece
T piece 60 FT T piece 60 FT RT 610 FT 6038130
1 piece
Cross-over 60 FT Cross-over 60 FT RK 610 FT 7027411
1 piece
45° bend 60 FT 45° bend 60 FT RB 45 610 FT 7066112
1 piece
90° bend 60 FT 90° bend 60 FT RB 90 610 FT 7125100
1 piece
