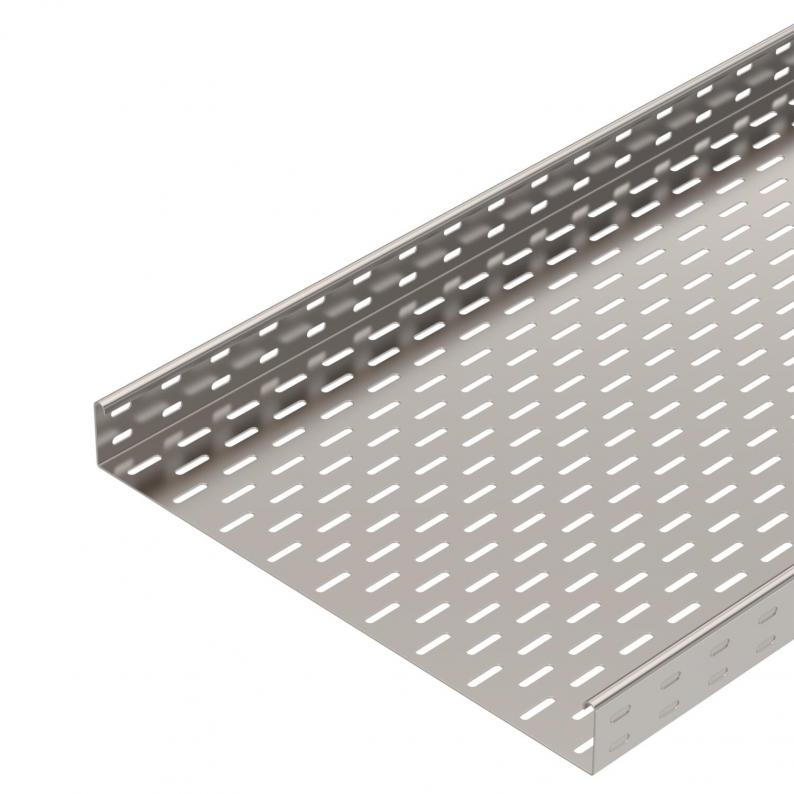

Cable tray SKS 60 A2

Item no. / Types

Length	3000 mm

Width

Plate thickness	1.5 mm

Maintain electrical functions	yes

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

SKS 60 = heavy-duty cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	stainless steel
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	37,5059 kg CO₂e / 1 Meter

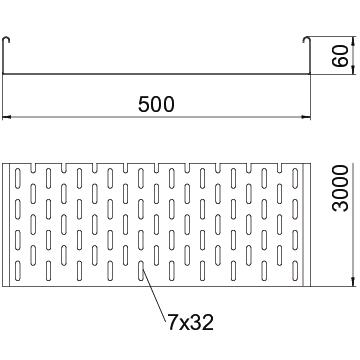

Dimension	60x500x3000
Dimension B	500 mm
Height	2 in
Height	60 mm
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Maß W	500 mm
Material	Stainless steel
Mounting perforation in base	yes
NATO hole pattern	no
Plate thickness	1,5 mm

Plate thickness	0,06 in
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	2,65 kN/m
Support spacing 2.0 m	1,8 kN/m
Support spacing 2.5 m	1,15 kN/m
Support spacing 3.0 m	0,5 kN/m
Surface	Bright, treated
Type of connector, cable support system	Screwed
Usable cross-section	298 cm²
Usable cross-section	29800 mm²
Wide-span version	no
Width	500 mm
Width	20 in
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
SKS 610 A2	3000 mm	100 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056735	m	3 m
SKS 620 A2	3000 mm	200 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056737	m	3 m
SKS 630 A2	3000 mm	300 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056739	m	3 m
SKS 640 A2	3000 mm	400 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056742	m	3 m
SKS 650 A2	3000 mm	500 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056744	m	3 m
SKS 660 A2	3000 mm	600 mm	1.5 mm	yes	Stainless steel	Bright, treated	6056746	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector A2	RLVK 60 A2	6067654	piece	10 piece
Joint plate A2	SSLB 500 A2	7070373	piece	20 piece
90° bend 60 A2	RB 90 650 A2	6036630	piece	1 piece
Add-on tee 60 A2	RAA 650 A2	6042321	piece	1 piece
Cover with turn buckle A2	DRL 500 A2	6052959	m	3 m
Separating retainer 60 A2	TSG 60 A2	6062084	m	3 m
45° bend 60 A2	RBU 45 650 A2	7133243	piece	1 piece
90° bend 60 A2	RBU 90 650 A2	7134258	piece	1 piece
