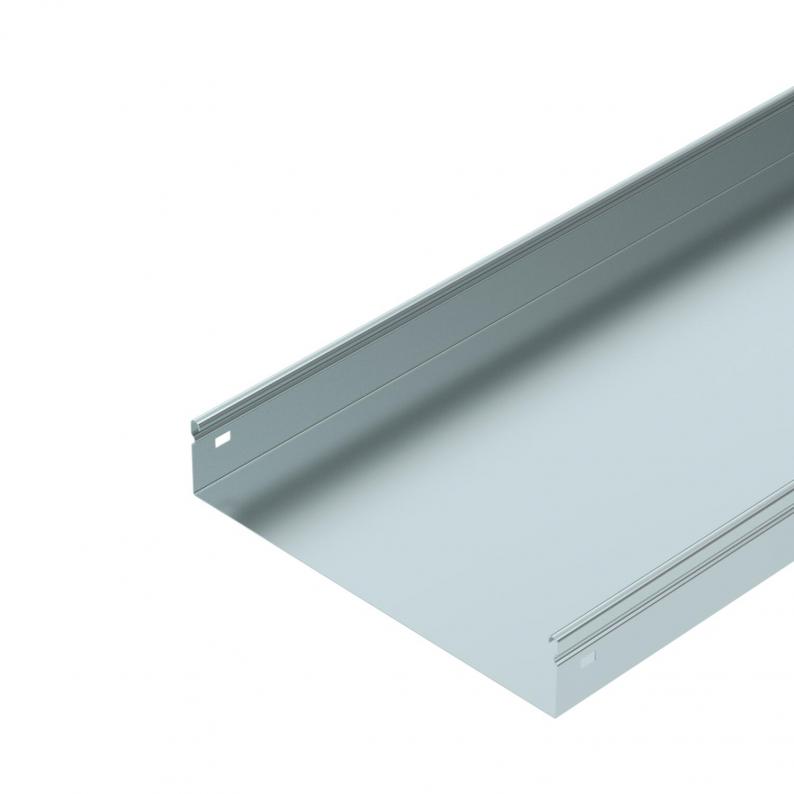

Cable tray GKS FL 60 FS
Item no. 6480004 | EAN 4012195571063
- Product description
-
Product descriptionGKS 60 FL = unperforated cable tray system with 60 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
- Technical data
-
Technical data

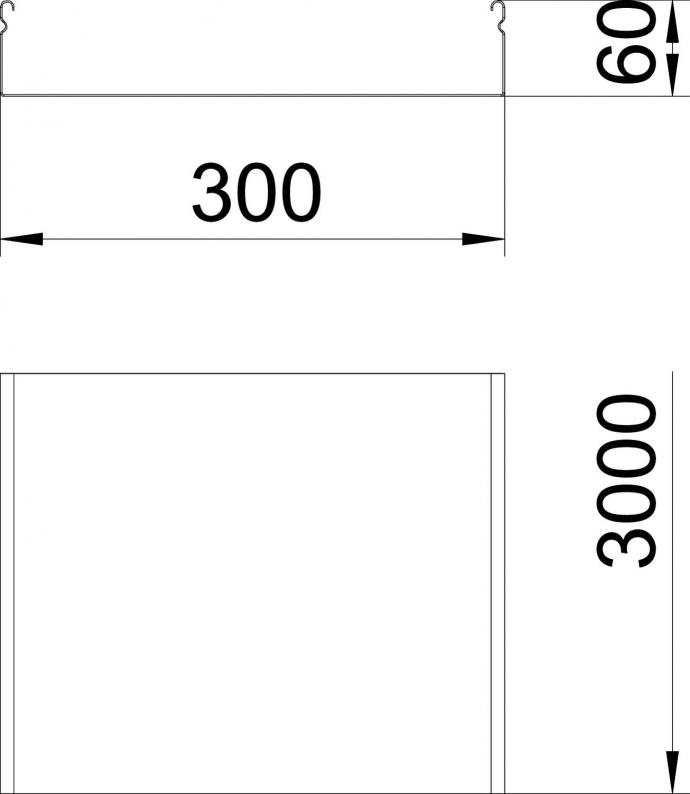

Colour zinc Connector version Without connectors Dimension 60x300x3000 Dimension B 300 mm Dimension H 60 mm Dimension L 3000 mm Height 60 mm Length 3000 mm Load test type according to IEC 61537 Type II Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1 mm Rustproof steel, pickled no Side perforation yes Support spacing 1.5 m 1,5 kN/m Support spacing 2.0 m 1 kN/m Support spacing 2.5 m 0,5 kN/m Surface Strip galvanized Type of connector, cable support system Screwed Usable cross-section 178 cm² Usable cross-section 17800 mm² Wide-span version no Width 300 mm With cover no Technical data
Load diagram, cable tray, type GKS FL60
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet GKS FL 630 FS / 6480004 , 0.46MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfNo invitation to tender text is available for this product.
