Cable ladder LG 75, 3 m VS FS
Item no. 6487062 | EAN 4012196512430
- Product description
-

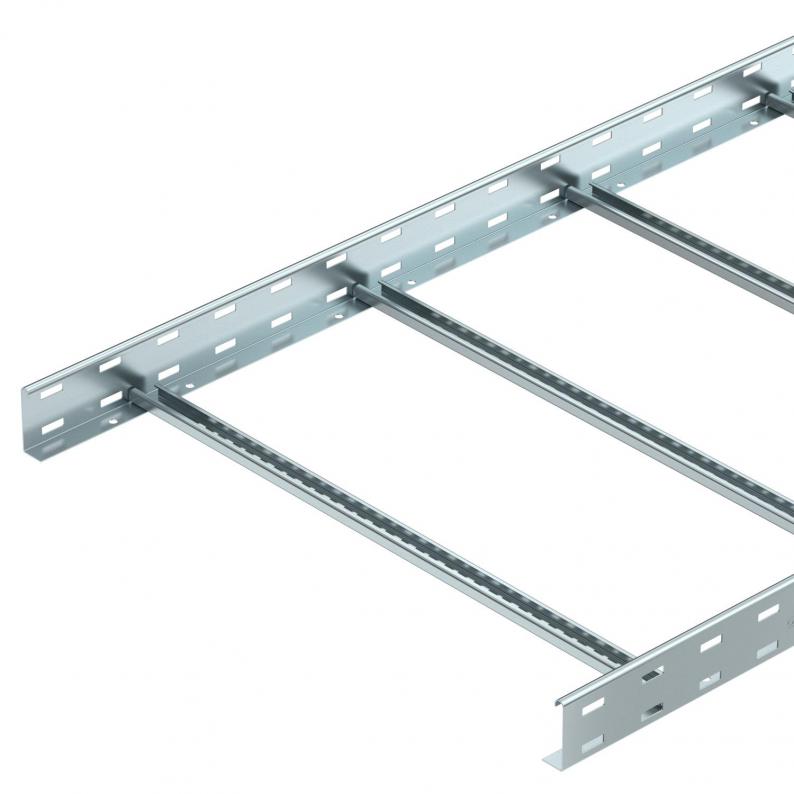

Product descriptionCable ladder with perforated side rail of side height 75 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
Colour zinc Dimension 75x750x3000 Height 75 mm Length 3000 ft Length 3000 mm Material Steel Rail thickness 2 mm Rung distance 300 mm Support spacing 2.0 m 2,2 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 4.0 m 0,45 kN/m Surface Strip galvanized Usable cross-section 41000 mm² Usable cross-section 410 cm² Width 750 mm Technical data
Load diagram, cable ladder, type LG 7... VS
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
All types
- Downloads
-
Data sheet LG 775 VS FS / 6487062 , 0.34MB , pdfCatalogue Cable support systems , 2.10MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LG 775 VS FS / 6487062 , 0.10MB , pdfUK Declaration of Conformity LG 775 VS FS / 6487062 , 0.09MB , pdfEnvironmental declaration Umweltproduktdeklaration (EPD) , 1.48MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
