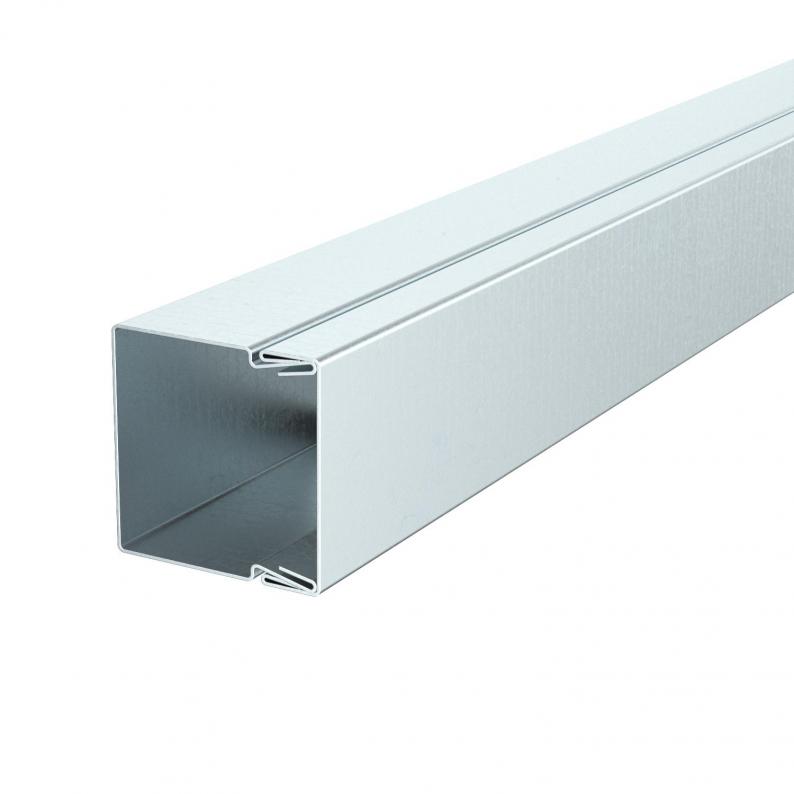

Cable duct, type LKM 30030
Type LKM30030FS
|Item no. 6246985
|EAN 4012196746866
Item no. / Type
6246985 / LKM30030FS
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 2 m
2m
m
Description
Duct cover and base with base perforation.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Equipotential bonding is guaranteed between the cover and the base without any additional aids.
Technical data

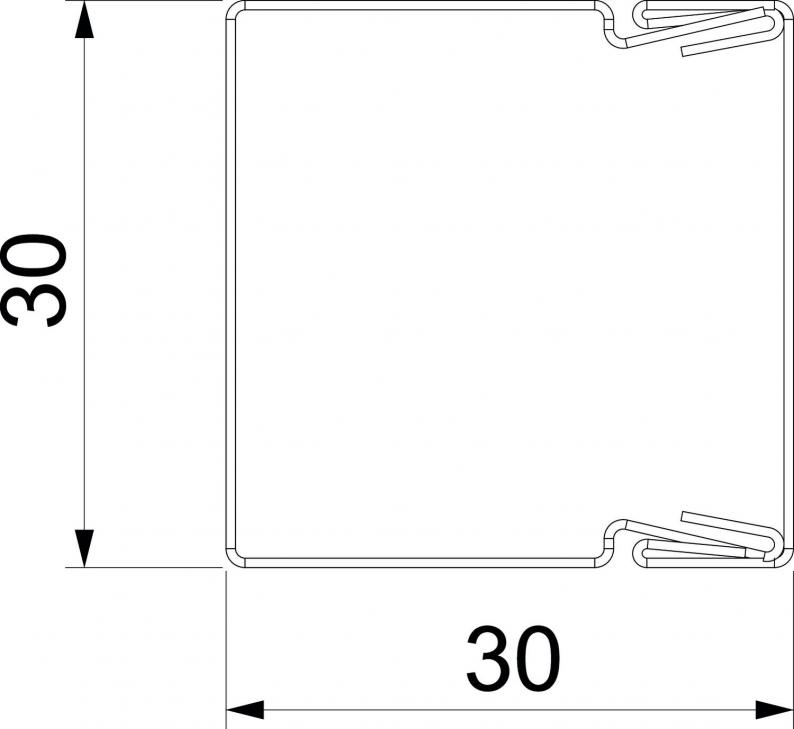

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 30 mm |
| Height | 30 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) | 4 |
| Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) | 4 |
| Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) | 4 |
| Usable cross-section | 805 mm² |
| Halogen-free | yes |
| Number of fixed partitions | 0 |
| Number of insertable partitions | 0 |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP30 |
| Delivery on a roll | no |
| Protection rating IK code | IK10 |
| Transparent | no |
| Fastening type | Base perforation |
| Version, cable trunking cover | Loose |
| Base perforation | with base perforation |
| Permitted temperature range, min. | -5 °C |
| Permitted temperature range, max. | 90 °C |
| Dimension | 30x30x2000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,4261 kg CO2e / 1 Meter |
