- Product description
-
Product description

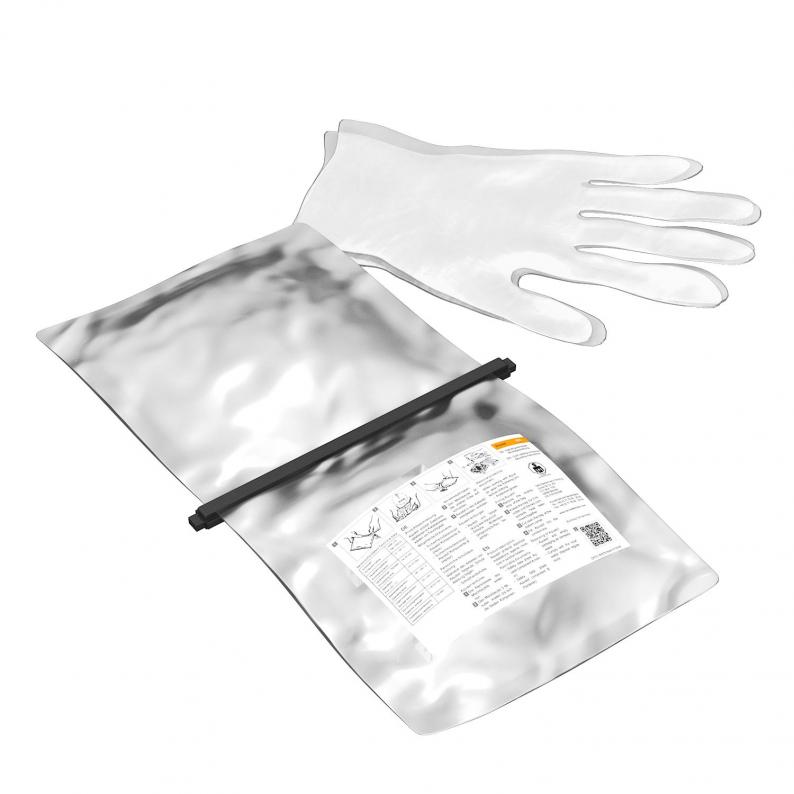

Two-component casting compound Aquasit in an aluminium bag, for filling junction boxes in outdoor areas exposed to high levels of and long-lasting dampness Also applicable for mechanical shock
Processing time of 20 minutes after opening and mixing. Can be stored unopened at 0 to 40 °C up to 24 months from date of production. Practical experience, tests and approvals only apply in conjunction with OBO junction boxes.
Protection rating with appropriate junction box: IP68
Rated voltage: 400 V
Penetration resistance: >25 kV/mm to VDE 0291 Part 2
Operating temperature: –40 to +80 °C
Processing temperature: 5 to +40 °C
Halogen-free, silicon-free, isocyanate-free
Environmentally friendly and without the need to be labelled
- Technical data
-
Technical data
Contents 1600 ml Dimension 1600 ml For Ex zone Without For Ex zone dust Without For Ex zone gas Without Material cable resin Two-component polyurethane resin Dimensions
Height 52 mm Length 330 mm Width 210 mm - All types
- Downloads
-
Data sheet KVMM 1600 / 2363036 , 0.27MB , pdfDeclaration of conformity KVMM 1600 / 2363036 , 0.15MB , pdfMounting instructions Montageanleitung Aquasit , 2.90MB , pdf
