Note: This article is discontinued.
You can find the current article here: 6036628 / 90° bend 60 A2
90° bend 60 A2
Item no. 7134231 | EAN 4012196254712
- Product description
-

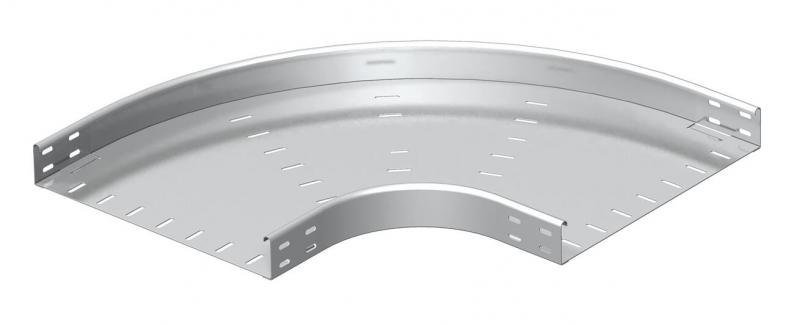

Product description90° bend, horizontal and unperforated, for all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data

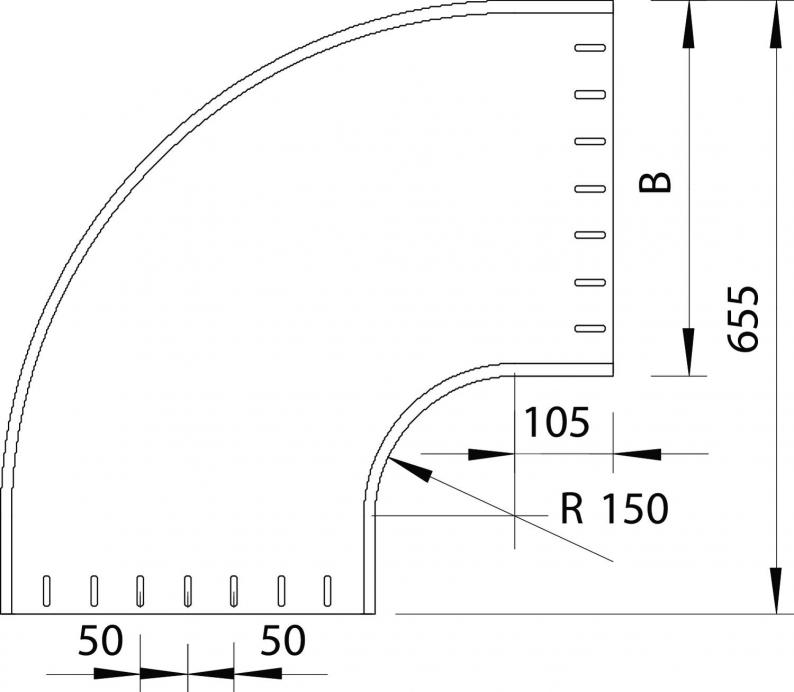

Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 60x400 Dimension B 400 mm Dimension R 150 mm Height 60 mm Height 2 in Maintain electrical functions no Material Stainless steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,5 mm Rustproof steel, pickled no Side perforation no Surface Bright, treated Type of connector, cable support system Screwed Wide-span version no Width 16 in Width 400 mm - All types
- Downloads
-
Data sheet RBU 90 640 A2 / 7134231 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RBU 90 640 A2 / 7134231 , 0.10MB , pdfREACH Declaration of conformity RBU 90 640 A2 / 7134231 , 0.12MB , pdfRoHS Declaration of conformity RBU 90 640 A2 / 7134231 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
