Note: This article is discontinued.
You can find the current article here: 6036100 / 45° bend 60 FS
45° bend 60 FS
Item no. 6043763 | EAN 4012196052271
- Product description
-

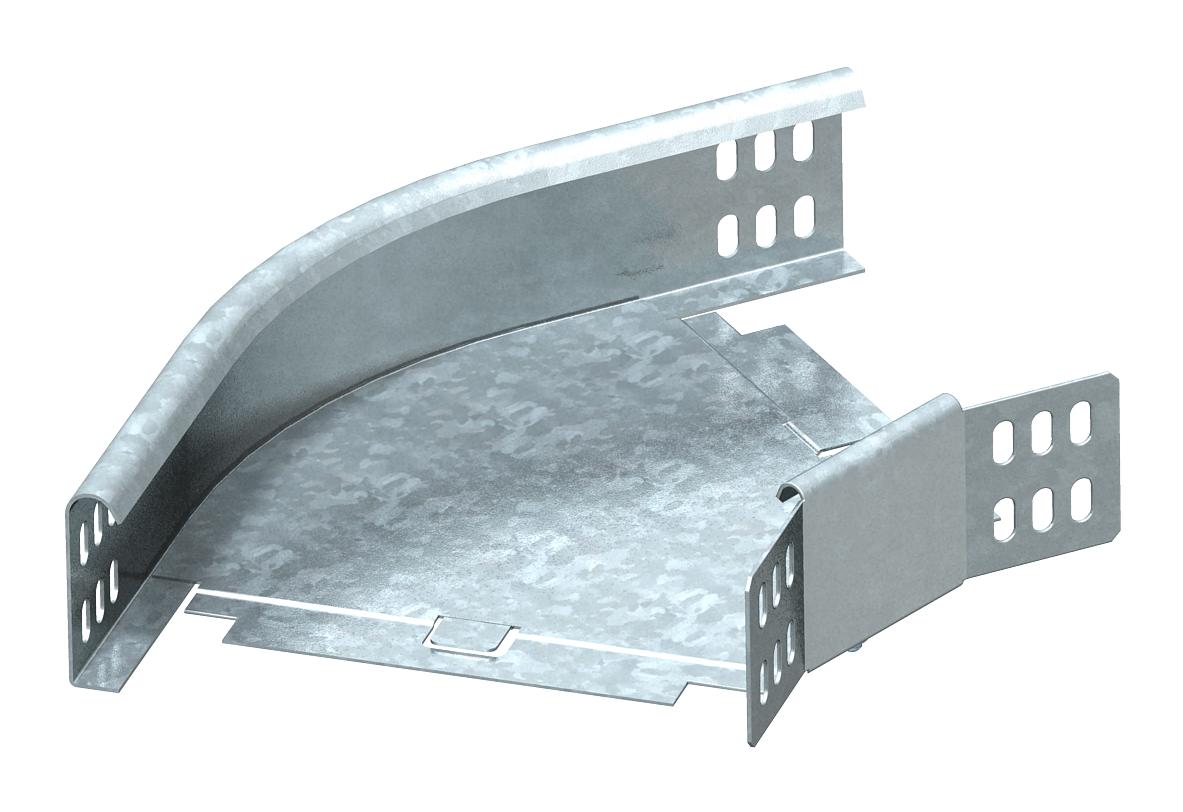

Product description45° bend, horizontal, for all cable tray types of 60 mm side height.
The fitting is shipped in an unmounted state. The WKV 60 angle connector is designed for 90° bends and can be adjusted to 45° on site.
Including appropriate fastening material.
-
- Technical data
-
Technical data

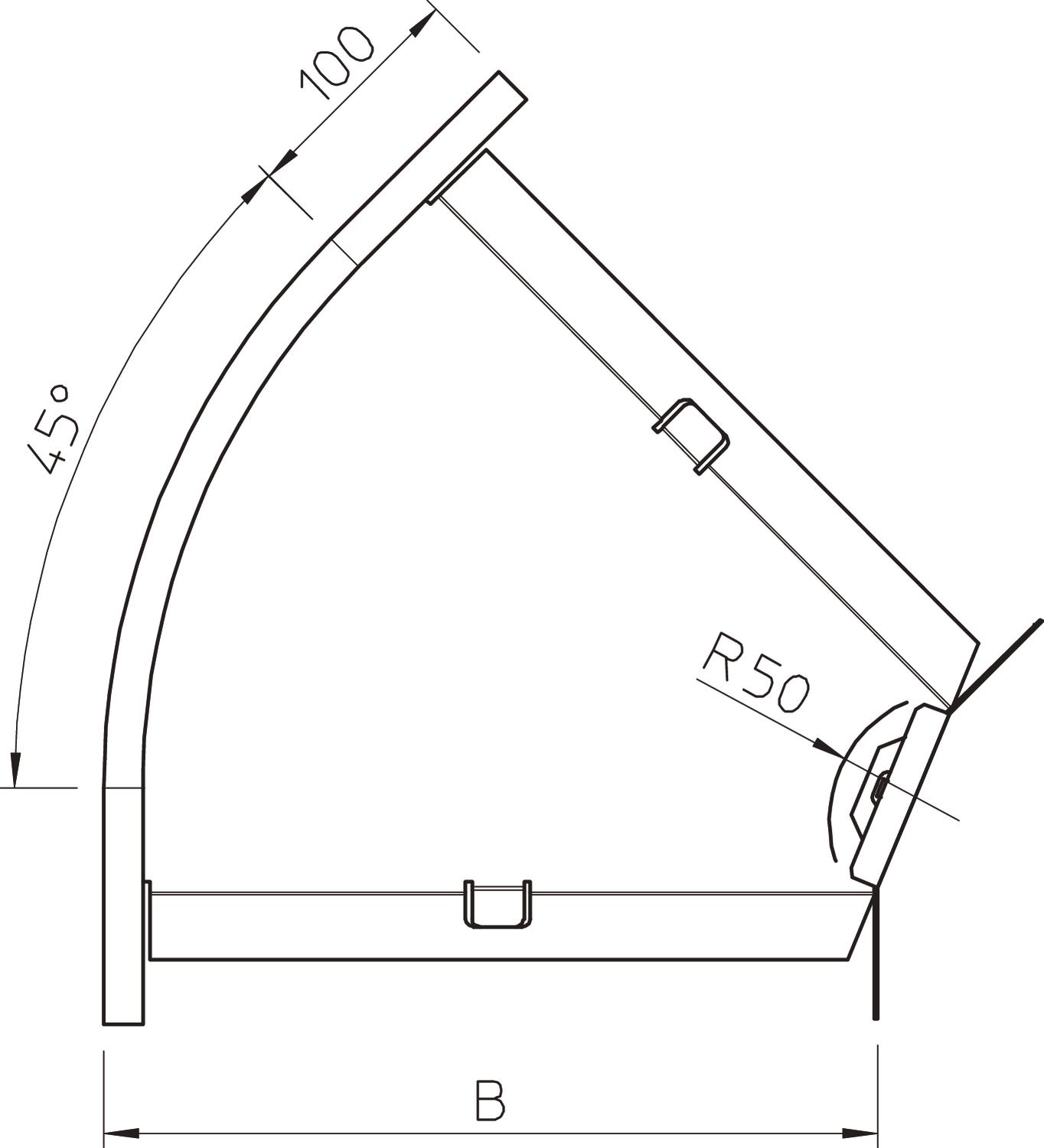

Bend (angle) 45° Change of direction Horizontal Connector version Supplied connectors Dimension 60x100 Dimension B 100 mm Dimension R 50 mm Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 4 in Width 100 mm - All types
- Downloads
-
Data sheet RB 45 610 FS / 6043763 , 0.18MB , pdfEU declaration of conformity RB 45 610 FS / 6043763 , 0.10MB , pdfREACH Declaration of conformity RB 45 610 FS / 6043763 , 0.12MB , pdfRoHS Declaration of conformity RB 45 610 FS / 6043763 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
